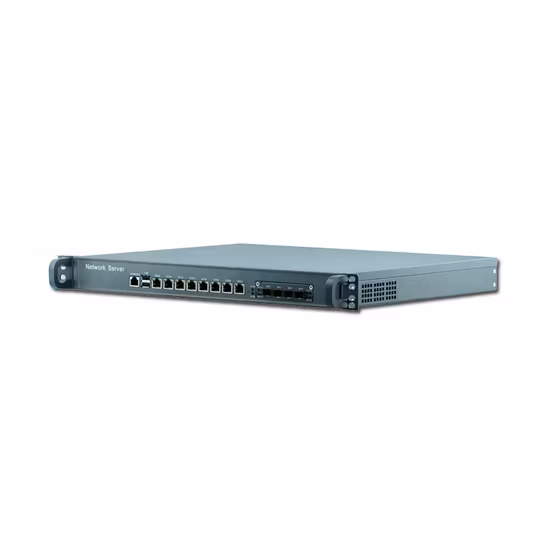

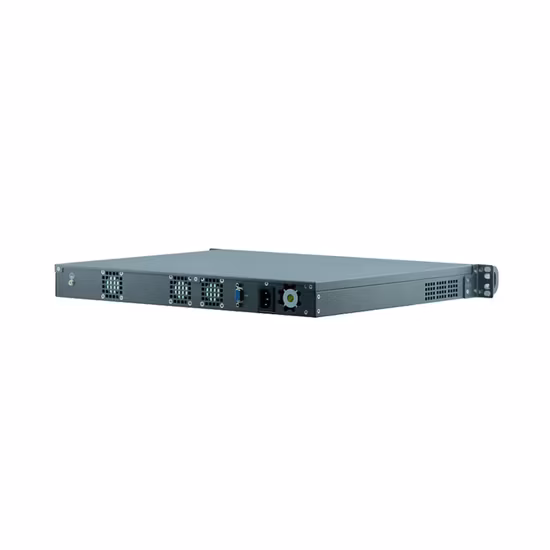

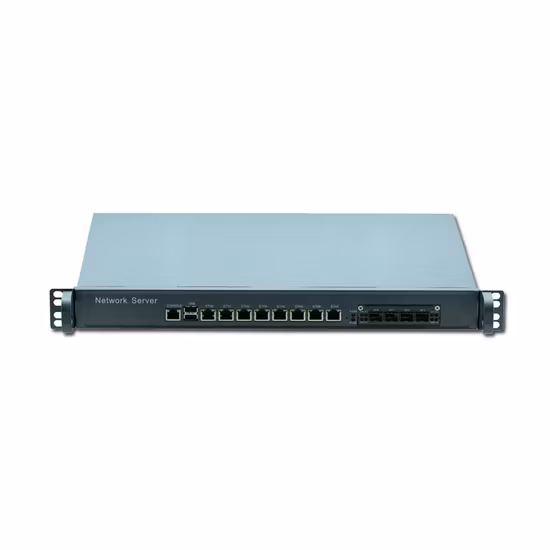

1 U Rack Mount PC Firewall Security Appliance SFP

1U Rackmount Metal EnclosureLGA1150 Intel® Core™ i3/i5/i7 CPU1*DDR3 SODIMM slotIntel 82583V, 1000/100/10Mbps,8x LAN (Byp;

Send inquiry

Basic Info

Model NO.	RO12U
Type	Wireless and Wire
Network Site	Intermediate Node Routers
Transfer Rate	10/100/1000Mbps
Firewall	Firewall
Ports	6
Port Structure	Modular
Application	Enterprise
Network	Gigabit LAN Ports
Performance	Line-Rate Router
Architecture	1u Rackmount
LAN	Intel 82583V, 1000/100/10Mbps,6X LAN (Bypass Custo
Installation	1u Rackmount
Product Name	Server 1u
Transport Package	Netrual Carton Box
Specification	430mm(W)281mm(D)45mm(H)
Origin	Shenzhen
HS Code	8471504090
Production Capacity	50000PCS/Year

Product Description

1U Rackmount Metal EnclosureLGA1150 Intel® Core™ i3/i5/i7 CPU1*DDR3 SODIMM slotIntel 82583V, 1000/100/10Mbps,8x LAN (Bypass custom optional)1U 8 Gigabit LAN Intel® Core™ i3/i5/i7 CPU Rackmount Network Appliance

Chassis	Color	Light sliver black
	Dimensions	430mm x 360mm x 44.5mm(L x W x H)
	Structure	Turbine copper fan heat sink structure
	Material	Galvanized steel sheet
Motherboard	CPU	Support LGA1150 Intel® Core™ i3/i5/i7 processor
	Graphics	Integrated Intel®HD Graphics
	Memory	1 x DDR3 /1.35V /2GB Ram memory
Storage	2.5"HDD	N/A
	CF	N/A
	SSD	16G
Features	LAN	Intel 82574L, 1000/100/10Mbps,8 x LAN Intel 82580EB 1000Mbps,4 x Fiber Ports
	USB	2 x USB2.0
	Serial Ports	1x COM
	Display	1 x VGA
	Audio	N/A
	Expansion Slots	2 x MINIPCIE(1 x MSATA,1 x WIFI interface )
	Indicater	1 x PWRLED, 1 x HDDLED
	System Control	System Switch and AC power connector
	Wireless	N/A
Power	Power supply	220W
Reliability	Installation	Desktop or wall_mounted
	Working T.	0ºC~45ºC
	Storage T.	-20ºC~70ºC
	Relative humidity	5%-95%( relative humidity, non_condensing )
	Vibration	0.5g rms/5-500HZ/random/operating

1 U Rack Mount PC Firewall Security Appliance SFP

x86 network appliance firewall barebone router linux "mini pc nashdd 3.5 drive baymini pc server8 sata port motherboard" 1 u rack mount pc 6 lan firewall router

Server 1u 8 LAN Firewall Router Firewall Security Appliance
